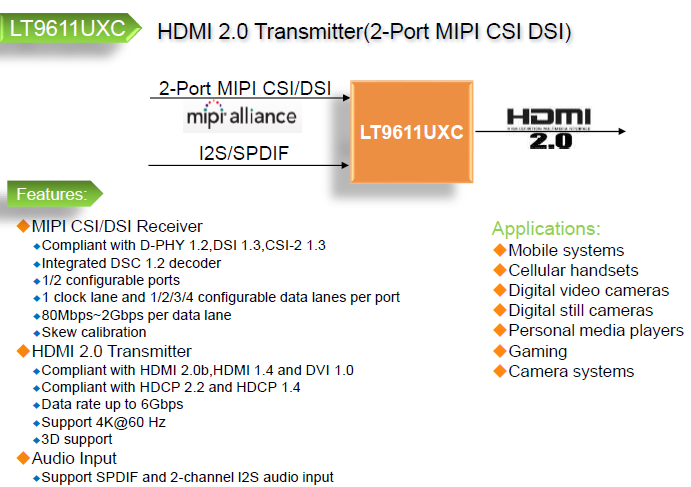

LT9611UCX-MIPI/LVDS_TO_HDMI 2.0 Transmitter(2-Port MIPI CSI/DSI)
作者：網站管理員 來源：本站原創 日期：2021/4/10 15:45:21 點擊：2387 屬于：產品展示
1. Description
The LT9611UXC is a high performance MIPI DSI/CSI to HDMI2.0 converter for STB, DVD applications.
The MIPI DSI/CSI input features configurable single-port or dual-port with 1 high-speed clock lane, and 1~4 high-speed data lanes operating at maximum 2Gbps/lane, which can support a total bandwidth of up to 16Gbps. LT9611UXC supports burst mode DSI video data transferring, also supports flexible video data mapping path. Integrated DSC decoder implements up to 1:3 visually lossless decompression which reduces bandwidth requirement for UHD video transport, also power consumption and EMI.
The HDMI2.0 output supports data rate up to 6Gbps which provides sufficient bandwidth for 4k@60Hz video. Also HDCP2.2 is supported for data encryption.
Two digital audio input interfaces are available, I2S and SPDIF. The I2S interface supports 2-ch LPCM and the SPDIF interface supports 2-ch LPCM or compressed audio, both at maximum 192kHz sample rate.
The device is capable of automatic operation which is enabled by an integrated microprocessor that uses an embedded SPI flash for firmware storage. System control is also available through the configuration I2C slave interface.
2. Features
? Single/Dual-Port MIPI DSI/CSI Receiver
? Digital Audio Input
? HDMI2.0 Transmitter
? Miscellaneous
3. Applications
? STB
? DVD/BD
The LT9611UXC is a high performance MIPI DSI/CSI to HDMI2.0 converter for STB, DVD applications.
The MIPI DSI/CSI input features configurable single-port or dual-port with 1 high-speed clock lane, and 1~4 high-speed data lanes operating at maximum 2Gbps/lane, which can support a total bandwidth of up to 16Gbps. LT9611UXC supports burst mode DSI video data transferring, also supports flexible video data mapping path. Integrated DSC decoder implements up to 1:3 visually lossless decompression which reduces bandwidth requirement for UHD video transport, also power consumption and EMI.
The HDMI2.0 output supports data rate up to 6Gbps which provides sufficient bandwidth for 4k@60Hz video. Also HDCP2.2 is supported for data encryption.
Two digital audio input interfaces are available, I2S and SPDIF. The I2S interface supports 2-ch LPCM and the SPDIF interface supports 2-ch LPCM or compressed audio, both at maximum 192kHz sample rate.
The device is capable of automatic operation which is enabled by an integrated microprocessor that uses an embedded SPI flash for firmware storage. System control is also available through the configuration I2C slave interface.
2. Features
? Single/Dual-Port MIPI DSI/CSI Receiver
? Digital Audio Input
? HDMI2.0 Transmitter
? Miscellaneous
3. Applications
? STB
? DVD/BD
? PTV Box
