1.   General Description
he LT8612SX is an HDMI to HDMI&VGA/YPbPr converter, which converts High Definition Multimedia Interface (HDMI) data stream to standard High Definition Multimedia Interface (HDMI) signal and analog RGB/YUV signals. It also outputs 8 channel I2S and SPDIF signals which enable high quality 7.1 channel audio.
Standard HDMI uses 19 lines to implement data transmission. The LT8612SX uses the latest ClearEdge? Technology to implement the conversion of HDMI source devices, such as mobile phone, adapter, etc, to HDMI devices. Also it can output analog RGB signal with or without separate SYNC signals, or YPbPr.

2. Features
? Compliant with HDMI1.4  and HDCP1.4
? HDMI input resolution up to 4Kx2K@30Hz
? HDMI output resolution up to 4Kx2K@30Hz
? VGA output throughput up to 300MSPS
? YPbPr output resolution up to 1080P@60Hz
? Audio output support 8 channel IIS audio outputs or both 6 channel IIS and SPDIF
? Supports 3D format
? Supports CEC

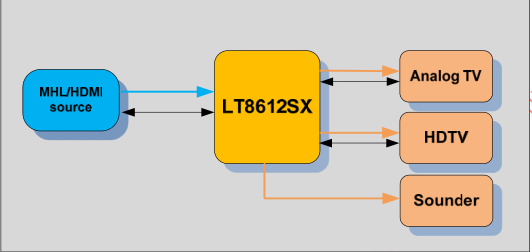

3.  Application Diagram
? Digital Signage
? PC, Laptop Mother Boards
? HDMI to VGA/YPbPr Dongle
? Car Entertainment System
